SGC490 PPGI coil

Introduction

+86 13515317633

crystal@jnsgsteel.cn

◉ Product Details

Specification

Category		Numerical value
Technical Standard	EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
Steel Grade	DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC,SECE, BLCE+Z, BLDE+Z, BUSDE+Z
	or Customer’s Requirement
Base Steel	Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
Thickness	0.12-6.0mm
Width	10-2000mm
Surface Color	RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc
paint	pencil hardness	Not less than HB
	Topcoat mirror gloss	Topcoat mirror gloss: ≥40 degrees
	Impact energy	Not less than 9J
	Neutral salt spray resistance test	No bubbles for more than or equal to 1500h
	UVB-313	Greater than or equal to 700h
Quality	Approved by SGS,ISO
Coil Weight	0.5-20MT per coil
Package	Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export market	Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc

Grades	Chemical composition.%.max
Grades	C	Mn	P	S
SGHC	0.15	0.80	0.05	0.05
SGHC400	0.25	1.70	0.20	0.05
SGHC440	0.25	2.00	0.20	0.05
SGHC490	0.30	2.00	0.20	0.05
SGHC540	0.30	2.50	0.20	0.05
SGCC	0.15	0.80	0.05	0.05
SGCH	0.18	1.20	0.08	0.05
SGCD1	0.12	0.60	0.04	0.04
SGCD2	0.10	0.45	0.03	0.03
SGCD3	0.08	0.45	0.03	0.03
SGCD4	0.06	0.45	0.03	0.03
SGC340	0.25	1.70	0.20	0.05
SGC400	0.25	1.70	0.20	0.05
SGC440	0.25	2.00	0.20	0.05
SGC490	0.30	2.00	0.20	0.05
SGC570	0.30	2.50	0.20	0.05

Product Details

STRONG ANTI-CORROSION ABILITY

The surface is hot-dip galvanized or electro galvanized. The zinc layer can effectively resist corrosive media such as atmospheric oxygen and water vapor, thereby extending the service life of the steel.

GOOD WEATHER RESISTANCEAfter a special coating process, it has excellent weather resistance.lt can be used in severe climate conditions and is not prone to fading cracking or corrosion.

COLORFULIt can be made into a variety of colors and patterns through coating processes, has good decorative properties, and is suitable for many fields such as construction, furniture, and electrical appliances.

Product Display

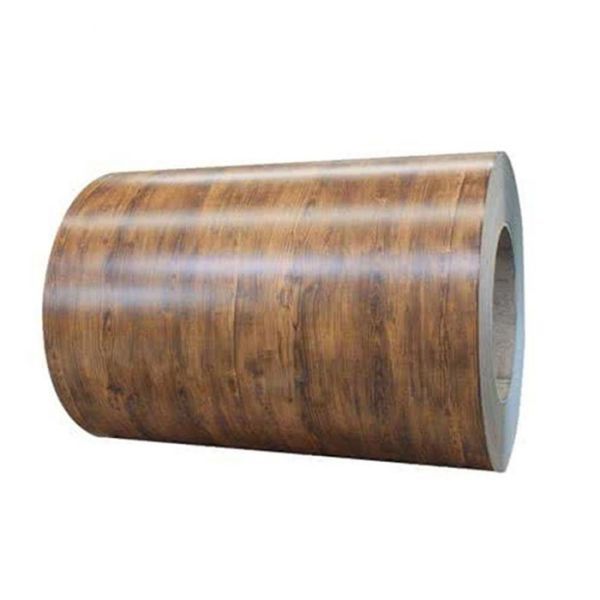

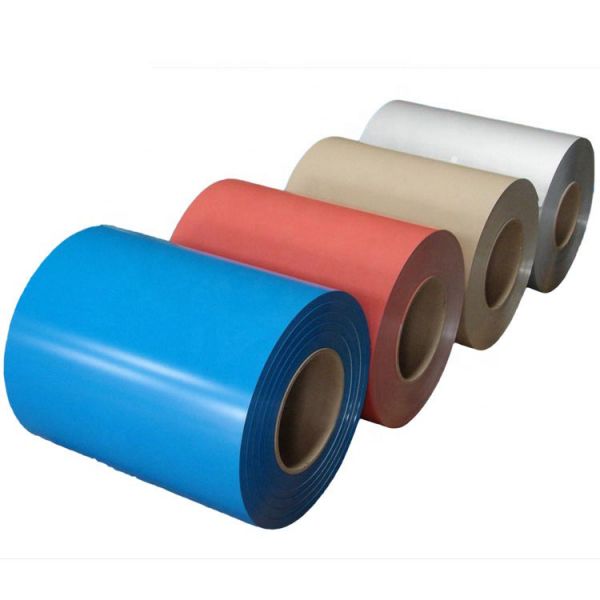

ALL KINDS OF DECORATIVE PATTERN

Other colors or pattemns can be custom izedupon request. lf you have a specified color,you can send us a RAL number and we cancustomize it on request.
